chisel hammers
Ideal for removing carpet and plaster, scabbling natural stone, chiselling out joints and pointing masonry. You will always find the right Von Arx-Chisel Hammer to handle every job. Available with different chisels.
products
23 BG
Article no. 700441
Technical data
| Weight: | 1.5 kg (3.3 lbs) |
| Air consumption: | 100 L/Min. (3.5 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
| Acoustic power level: | 101 dB (A) |

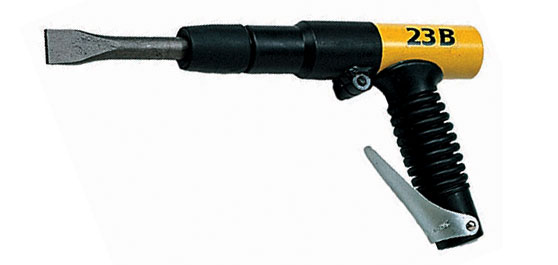

23 B
Article no. 700314
Technical data
| Weight: | 1.7 kg (3.8 lbs) |
| Air consumption: | 100 L/Min. (3.5 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
| Acoustic power level: | 101 dB (A) |
MH 23
Article no. 700738
Technical data
| Weight: | 2.4 kg (5.3 lbs) |
| Air consumption: | 100 L/Min. (3.5 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
| Acoustic power level: | 109 dB (A) |
MH 23 K
Article no. 706092
Technical data
| Weight: | 2.3 kg (5.1 lbs) |
| Air consumption: | 100 L/Min. (3.5 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 1/4“ |
| Acoustic power level: | 109 dB (A) |
34 B
Article no. 700366
Technical data
| Weight: | 2.2 kg (4.9 lbs) |
| Air consumption: | 125 L/Min. (4.4 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
| Acoustic power level:: | 101 dB (A) |
MH 34
Article no. 700741
Technical data
| Weight: | 2.2 kg (4.9 lbs) |
| Air consumption: | 125 L/Min. (4.4 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
| Acoustic power level:: | 101 dB (A) |
45 B
Article no. 700411
Technical data
| Weight: | 3.4 kg (7.5 lbs) |
| Air consumption: | 158 L/Min. (5.6 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
| Acoustic power level: | 101 dB (A) |
34 BGV
Article no. 700464
Technical data
| Weight: | 5.4 kg (12.0 lbs) |
| Length:: | 1750mm (69“) |
| Air consumption: | 125 L/Min. (4.4 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
45 BGV
Article no. 706766
Technical data
| Weight: | 6.6 kg (14.6 lbs) |
| Length: | 1800mm (71“) |
| Air consumption: | 158 L/Min. (5.6 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
MHV 45
Article no. 707404
Technical data
| Weight: | 7.8 kg (17.3 lbs) |
| Length:: | 1350mm (53“) |
| Air consumption: | 158 L/Min. (5.6 cfm) |
| Air pressure: | max. 7 bar (100 psi) |
| Connection thread: | G 3/8“ |
