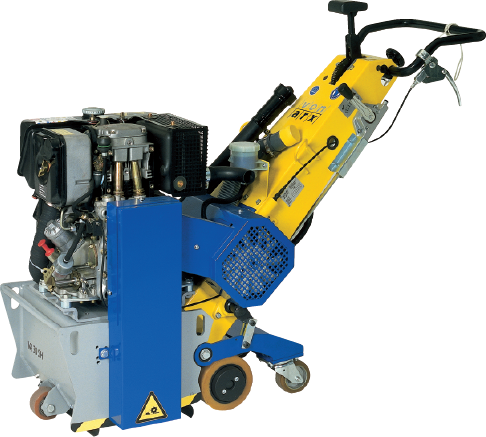

VA 30 SH serie
Working width 300 mm
The VA 30 SH with hydraulic traction is the best choice when heavy duty cleaning and roughening work is due. This machine owes its agility to hydraulic traction and is easy to use. It is ideal for cleaning large areas of concrete, removing concrete slurry, dirt, plastic or roughening smooth surfaces. It is also used for paint removal and rubber lining removal at airports. Various cutters can be fitted to suit different applications. The VA 30 SH is equipped with a variable depth adjuster and a vibration absorption system.
The VA 30 SH with hydraulic traction is the best choice when heavy duty cleaning and roughening work is due. This machine owes its agility to hydraulic traction and is easy to use. It is ideal for cleaning large areas of concrete, removing concrete slurry, dirt, plastic or roughening smooth surfaces. It is also used for paint removal and rubber lining removal at airports. Various cutters can be fitted to suit different applications. The VA 30 SH is equipped with a variable depth adjuster and a vibration absorption system.
products
VA 30 SH
with hydraulic traction – 400V, 50HZ
Technical data
| Article number | 707199 |
| Power | 400V, 50HZ |
| Wattage/HP | 7,5Kw |
| Weight | 305.4Kg/673lbs |
| Working width | 30cm/12" |
| Distance to wall | 9cm/3.5" |
| Depth hard concrete | 7mm/.27" |
| Depth softer concrete | 10mm/.40" |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
VA 30 SH
with hydraulic traction – 230V, 60HZ
Technical data
| Article number | 800014 |
| Power | 230V, 60HZ |
| Wattage/HP | 7,5Kw |
| Weight | 285Kg/628lbs |
| Working width | 30cm/12" |
| Distance to wall | 9cm/3.5" |
| Depth hard concrete | 7mm/.27" |
| Depth softer concrete | 10mm/.40" |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
VA 30 SH
with hydraulic traction – 480V, 60HZ
Technical data
| Article number | 800007 |
| Power | 480V, 60HZ |
| Wattage/HP | 7,5Kw |
| Weight | 328Kg/723lbs |
| Working width | 30cm/12" |
| Distance to wall | 9cm/3.5" |
| Depth hard concrete | 7mm/.27" |
| Depth softer concrete | 10mm/.40" |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
VA 30 SH
with hydraulic traction – Gasoline
Technical data
| Article number | 707533 |
| Power | Gasoline |
| Wattage/HP | 8,2Kw |
| Weight | 310Kg/683lbs |
| Working width | 30cm/12" |
| Distance to wall | 9cm/3.5" |
| Depth hard concrete | 7mm/.27" |
| Depth softer concrete | 10mm/.40" |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
VA 30 SH
with hydraulic traction – Diesel
Technical data
| Article number | 707200 |
| Power | Diesel |
| Wattage/HP | 5,6Kw |
| Weight | 273Kg/602lbs |
| Working width | 30cm/12" |
| Distance to wall | 9cm/3.5" |
| Depth hard concrete | 7mm/.27" |
| Depth softer concrete | 10mm/.40" |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
VA 30 SH
with hydraulic traction & electrostart – Diesel
Technical data
| Article number | 707532 |
| Power | Diesel electrostart |
| Wattage/HP | 7,5Kw |
| Weight | 316Kg/697lbs |
| Working width | 30cm/12" |
| Distance to wall | 9cm/3.5" |
| Depth hard concrete | 7mm/.27" |
| Depth softer concrete | 10mm/.40" |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
