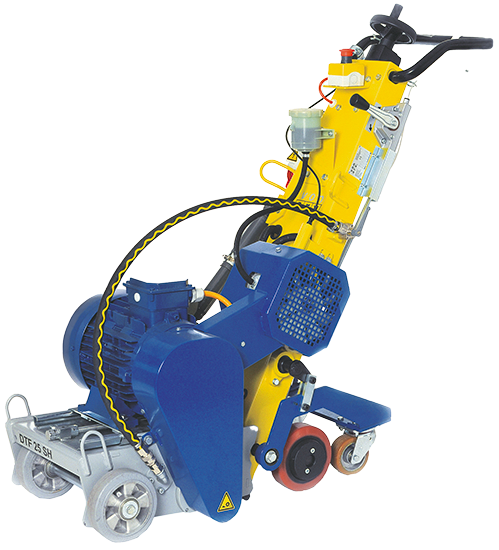

DTF 25 SH

Working width 250mm
With the DTF 25 SH the surface is carefully „grinded off“ instead of chipping it away. Thus the machine runs calmly and produces a smooth surface. The DTF 25 SH has a drum which is equipped with diamond blades. It removes the material very precise. For grooving or milling you can choose between two different diamond blades: one for rough and one for smooth surface preparation. For running the machine you must connect the water cooling system so the diamond blades do not overheat. The machine is available as a 11 kW electrical version with a hydraulic traction unit.

DTF-25-SH-hero

products

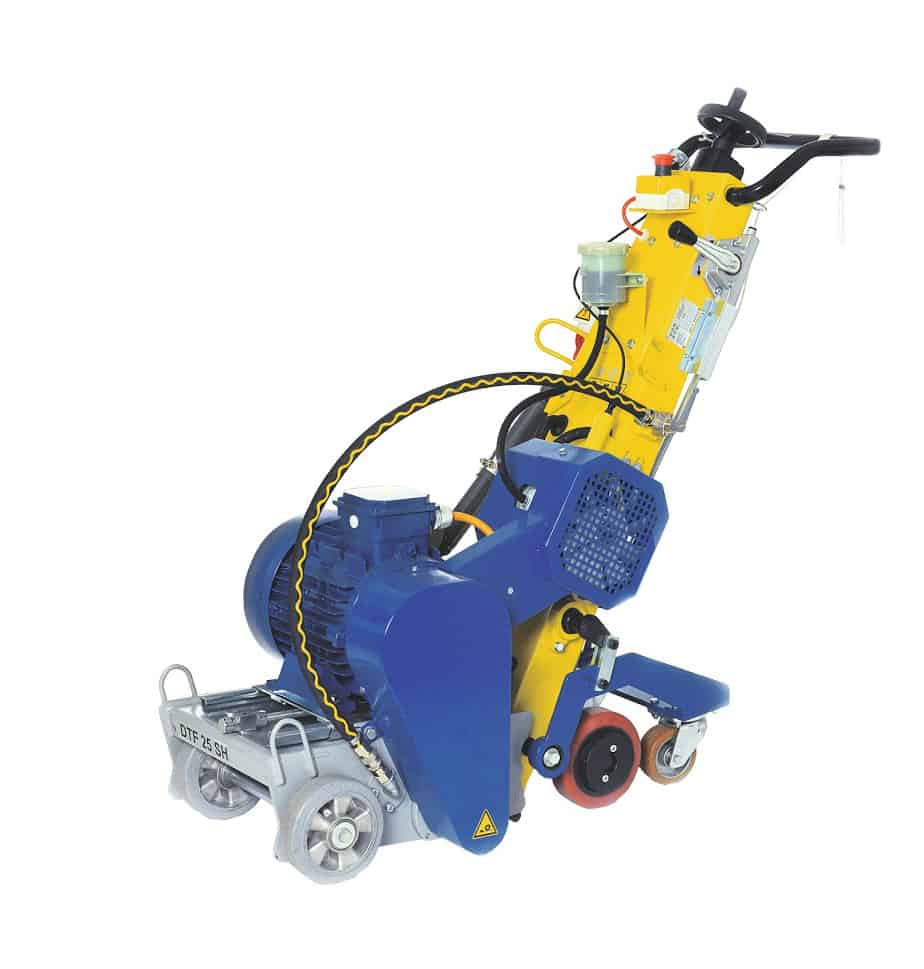

DTF 25 SH

with hydraulic traction

400V, 50HZ – 11Kw/14.8HP

Article number 708697
Power 400V, 50HZ
Wattage/HP 11Kw/14.8HP
Weight 226Kg/497lbs
Working width 25cm/10"
Distance to wall 10cm/4.1"
Depth hard concrete 10mm/.40"
Depth softer concrete 12mm/.48"
Production/h 45-50m2/485-540 ft2/h on maximum depth
Dimensions cm/inch 115x48x115/45x19x45
Standard cutters included 66pcs Diamond blades 125mm/5"

DTF 25 SH

with hydraulic traction

480V, 60HZ – 11Kw/14.8HP

Article number 800015
Power 480V, 60HZ
Wattage/HP 11Kw/14.8HP
Weight 226Kg/497lbs
Working width 25cm/10"
Distance to wall 10cm/4.1"
Depth hard concrete 10mm/.40"
Depth softer concrete 12mm/.48"
Production/h 45-50m2/485-540 ft2/h on maximum depth
Dimensions cm/inch 115x48x115/45x19x45
Standard cutters included 66pcs Diamond blades 125mm/5"

DTF 25 SH LPG

Honda 22 HP, 16.5 kW, propane

Article number 800076
Engine/power Honda 22 HP, 16.5 kW, propane
Wattage/HP 11Kw/14.8HP
Weight 240Kg/529 lbs
Working width 25cm/10"
Distance to wall 12cm/4.1"
Depth hard concrete 10mm/.40"
Depth softer concrete 12mm/.48"
Production/h 540-595 f2/h, 50-55 m2/h on maximum depth
Dimensions cm/inch 115x48x115/45x19x45
Standard cutters included 73 pcs of 5”, 125 mm diamond blades

SF DTF 25

Side cutter to DTF 25 and DTF 25 SH

Article no. 707534


Weight: ca. 15 kg (33 lbs)
Working width: 87mm (3.5“)
Distance to wall: 15mm (0.6“)
Dimensions: 320 x 215 x 200mm (13 x 8.5 x 8")
Drum is beeing cooled with water
The SF DTF 25 SH attachement unit, can be mounted on the Von Arx DTF 25 SH machine very easily in a couple of minutes
Attention! It is not allowed to run the side attachment unit at the same time as the main cylinder.

directional guide

Article no. 701235


The directional guide is particularly designed to be able to follow the given accurately.

If you want some information, about the products, please contact us via e-mail, and we will contact you back
