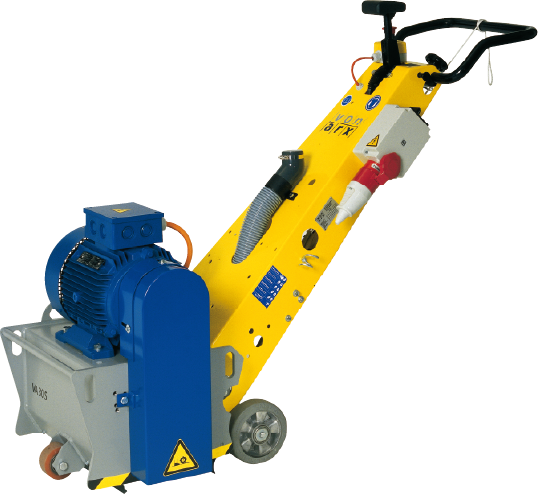

VA 30 S serie
Working width 300 mm:
Ideal where paved surfaces need to be roughened, grooved, cleaned, or where layers need to be removed. The VA 30 S‘ infinite variable depth adjuster allows to adapt perfectly to every surface. The vibration absorption system and easy handling make the job more pleasant and efficient. It allowes the VA 30 S to glide across the hardest challenge as a heavy duty surface preparation machine. Various cutters can be fitted to suit different applications.
products

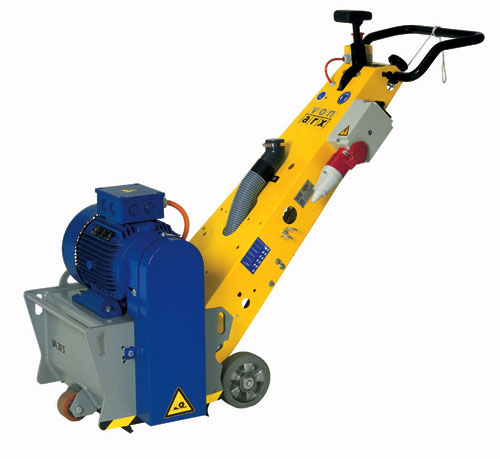

VA 30 S
400V, 50HZ
Technical data
| Article number | 706267 |
| Power | 400V, 50HZ |
| Wattage/HP | 7,5Kw/10HP |
| Weight | 222.8 Kg / 491 lbs |
| Working width | 30cm/12″ |
| Distance to wall | 9cm/3.5″ |
| Depth hard concrete | 6mm/.24″ |
| Depth softer concrete | 9mm/.35″ |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |

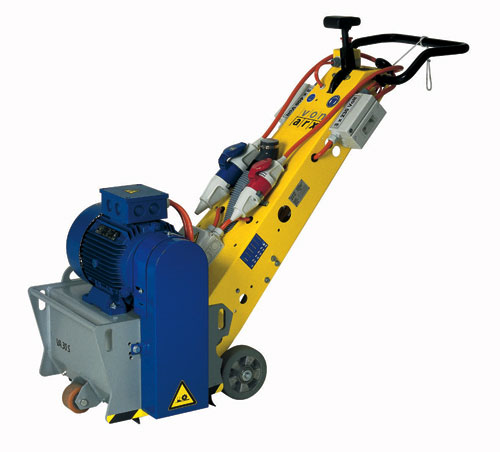

VA 30 S
230/400V dual
Technical data
| Article number | 707373 |
| Power | 230/400V dual, 50HZ |
| Wattage/HP | 5,5Kw/7.4HP |
| Weight | 191.8Kg/423lbs |
| Working width | 30cm/12″ |
| Distance to wall | 9cm/3.5″ |
| Depth hard concrete | 6mm/.24″ |
| Depth softer concrete | 9mm/.35″ |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
VA 30 S
230V, 60HZ
Technical data
| Article number | 800013 |
| Power | 230V, 60HZ |
| Wattage/HP | 7,5Kw/10HP |
| Weight | 210Kg/463lbs |
| Working width | 30cm/12″ |
| Distance to wall | 9cm/3.5″ |
| Depth hard concrete | 6mm/.24″ |
| Depth softer concrete | 9mm/.35″ |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |

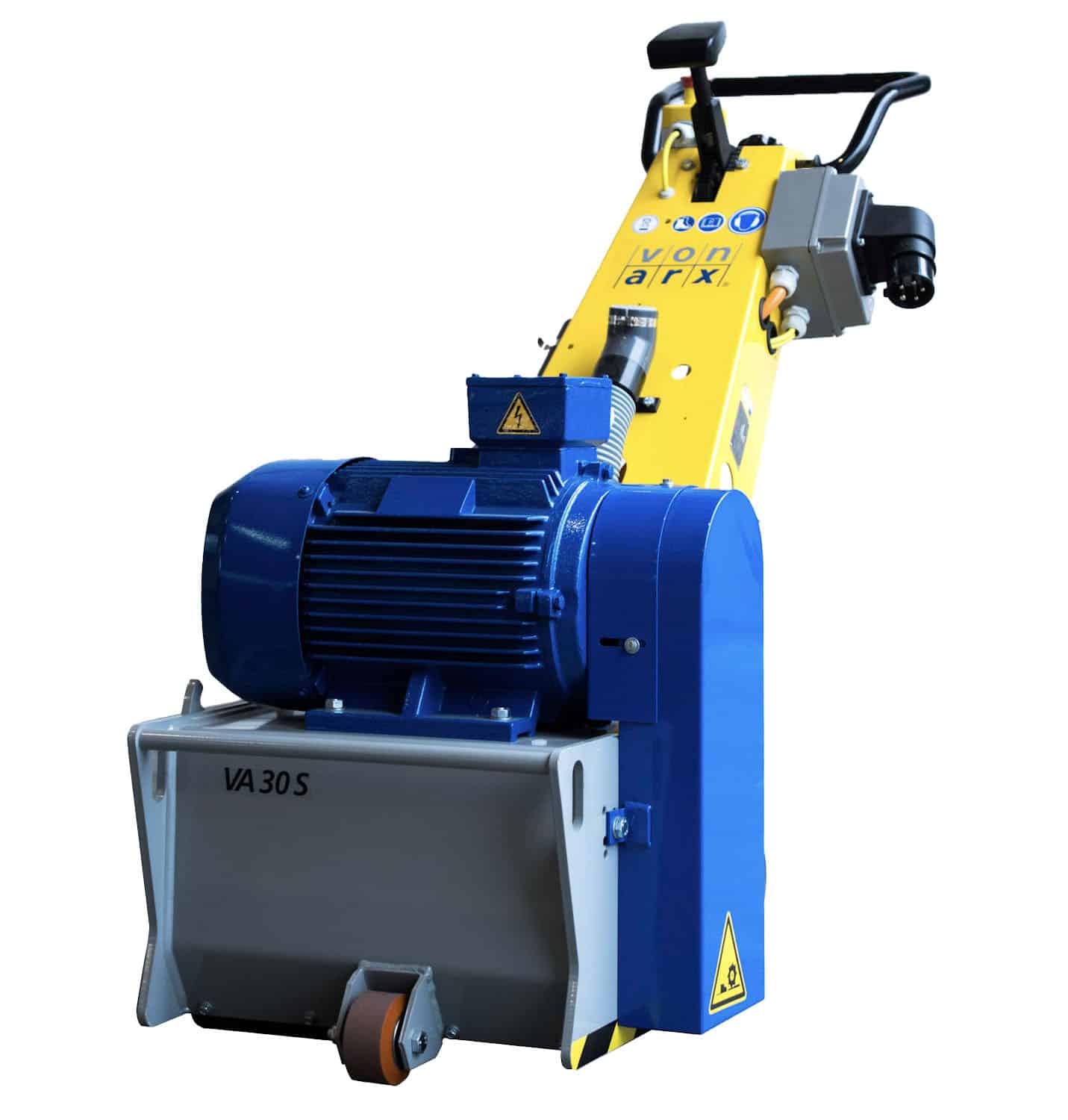

VA 30 S
480V, 60HZ
Technical data
| Article number | 800010 |
| Power | 480V, 60HZ |
| Wattage/HP | 7,5Kw/10HP |
| Weight | 243Kg/535lbs |
| Working width | 30cm/12″ |
| Distance to wall | 9cm/3.5″ |
| Depth hard concrete | 6mm/.24″ |
| Depth softer concrete | 9mm/.35″ |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |

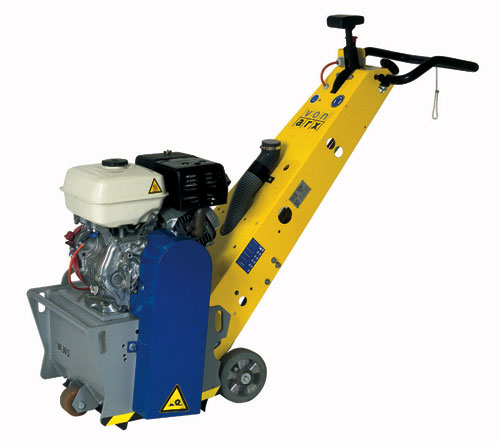

VA 30 S
Gasoline
Technical data
| Article number | 706275 |
| Power | Gasoline |
| Wattage/HP | 6Kw/8HP |
| Weight | 173/381lbs |
| Working width | 30cm/12″ |
| Distance to wall | 9cm/3.5″ |
| Depth hard concrete | 6mm/.24″ |
| Depth softer concrete | 9mm/.35″ |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
VA 30 S
Diesel
Technical data
| Article number | 706276 |
| Power | Diesel |
| Wattage/HP | 6,4Kw/8.4HP |
| Weight | 216Kg/476lbs |
| Working width | 30cm/12″ |
| Distance to wall | 9cm/3.5″ |
| Depth hard concrete | 6mm/.24″ |
| Depth softer concrete | 9mm/.35″ |
| Production/h | 50-55m2/540sqf |
| Dimensions cm/inch | 135x56x109/53x22x43 |
| Standard cutters included | Octagonal carbide |
